How Much Do Speaker Cables Affect Sound Quality? A Comprehensive Guide

How Exactly Do Speaker Cables Influence Audio Signal Transmission?

Speaker cables, serving as the “bridge” between audio devices, are far more than mere signal connectors. In the process of signal transmission, audio signals are affected by various factors such as conductor material, wire diameter, and insulating materials. High-purity copper conductors can reduce resistive losses during signal transmission, allowing current to flow more smoothly and thus preserving more sound details; in contrast, inferior conductors may cause signal attenuation due to excessive impurities, resulting in blurred treble and weak bass. The insulating material acts like a “protective shield”; if the material is of poor quality, it is prone to external electromagnetic interference. For example, electromagnetic waves generated by nearby power lines and wireless devices can mix into the audio signal, creating noise or background hum. Additionally, the thickness of the wire diameter affects transmission efficiency. An overly thin wire, when transmitting large dynamic audio signals (such as explosive passages in symphonies), may cause signal compression due to insufficient current-carrying capacity, robbing the sound of its intended dynamics. Therefore, the performance of speaker cables directly determines whether audio signals can be transmitted from one end of the device to the other “intact,” ultimately influencing the sound quality we perceive.

Core Composition and Key Performance Parameters of Speaker Cables

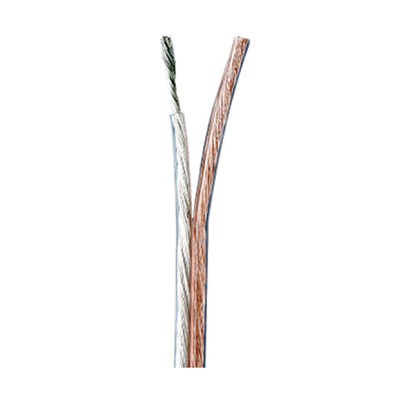

The core composition of speaker cables mainly includes two parts: conductors and insulating layers. The conductor is the core of signal transmission. Currently, high-purity copper conductors are mainstream, with a purity typically above 99.9%. Some high-end products use oxygen-free copper or even single-crystal copper, aiming to reduce impurities and grain boundaries within the conductor, thereby minimizing losses during signal transmission. The choice of wire diameter is also crucial. Generally speaking, the longer the transmission distance and the higher the power of the audio equipment, the thicker the required wire diameter. For instance, cables connecting main speakers in home theaters usually have a diameter of 16AWG (approximately 1.3mm) or larger, while cables for low-power satellite speakers can be appropriately thinner.

The insulating layer functions to isolate the conductor from the external environment and prevent signal interference between different conductors. Common insulating materials include PVC, polyethylene (PE), and Teflon (PTFE). PVC materials are cost-effective and suitable for ordinary household scenarios; PE materials offer better insulation performance and flexibility, making them ideal for environments requiring curved wiring; Teflon, with its high-temperature resistance and anti-aging properties, is mostly used in professional audio systems or high-temperature environments.

Among the key performance parameters, impedance and transmission efficiency are the focus. Lower impedance means less resistance to signal transmission, especially when transmitting high-frequency signals, as low impedance can reduce signal reflection, making the treble more transparent. Transmission efficiency reflects the “fidelity” of the cable to the signal. High-efficiency speaker cables can transmit over 90% of the input signal to the output end, while inferior cables may have a transmission efficiency of less than 70%, resulting in the loss of numerous details.

Selection and Usage Points of Speaker Cables in Different Scenarios

In home theater scenarios, the selection of speaker cables must balance transmission distance and equipment power. The distance between main speakers and amplifiers is usually 3-5 meters, so it is advisable to choose 14-16AWG high-purity oxygen-free copper cables, with PE as the preferred insulating layer. This not only reduces signal loss but also adapts to the complex wiring environment in living rooms (such as wall embedding and beam). Surround speakers are relatively hidden, and their cables may need to be threaded through pipes or laid along wall corners. In this case, multi-strand twisted wires with sheaths can be selected to enhance wear resistance and prevent internal conductor breakage due to excessive bending.

Concert venues and other professional settings have more stringent requirements for speaker cables. Due to the high power of equipment (often several thousand watts) and long transmission distances (up to tens of meters), it is necessary to use thick cables with 10-12AWG diameters, and the conductor purity must reach over 99.99% to withstand high-current transmission. The insulating layer must be flame-retardant, such as neoprene, to prevent safety hazards caused by heat generation during long-term operation. Furthermore, cables used in professional venues must pass anti-pull tests, as frequent movement and dragging may cause internal cable breakage, affecting performance quality.

For small audio systems such as desktop speakers and bookshelf speakers, there is no need to pursue overly thick wire diameters; 18-20AWG is sufficient. However, conductor purity must still be ensured to avoid affecting the clarity of mid-to-high frequencies due to material issues. In such scenarios, the flexibility of the cable is more important, facilitating flexible adjustment according to the placement of equipment while reducing space occupation on the desktop.

Key Differences Between Speaker Cables and Ordinary Audio Cables

Installation and Maintenance Notes for Speaker Cables

When installing speaker cables, it is first necessary to avoid parallel routing with high-voltage lines (such as 220V power lines). The distance between them should be kept above 30 centimeters to prevent magnetic field interference from alternating current on audio signals. Especially when embedding cables in walls, speaker cables and power lines must be installed in separate grooves. During wiring, the bending radius of the cable should not be too small, generally not less than 10 times the wire diameter. For example, a 16AWG cable (with a diameter of approximately 1.3mm) should have a bending radius greater than 13mm; otherwise, it may cause internal conductor breakage or insulating layer cracking.

When connecting devices, the connector part must be cleaned. If there is an oxide layer on the conductor surface, gently polish it with fine sandpaper until the metal luster is exposed, then insert it into the interface and tighten the screws to ensure good contact. For multi-strand twisted wires, the cores can be twisted into one strand first to avoid short circuits caused by loose strands.

In daily maintenance, it is necessary to regularly check whether the cable surface is damaged. If the insulating layer is found to be cracked, promptly wrap it with insulating tape or replace the cable to prevent electric shock or signal leakage. Cables that are not used for a long time should be coiled neatly, avoiding excessive pulling or squeezing, and stored in a dry and ventilated place, away from high temperatures and corrosive substances. For cleaning, simply wipe the surface with a dry cloth; never soak it in water or detergent, as this may affect the performance of internal conductors.
