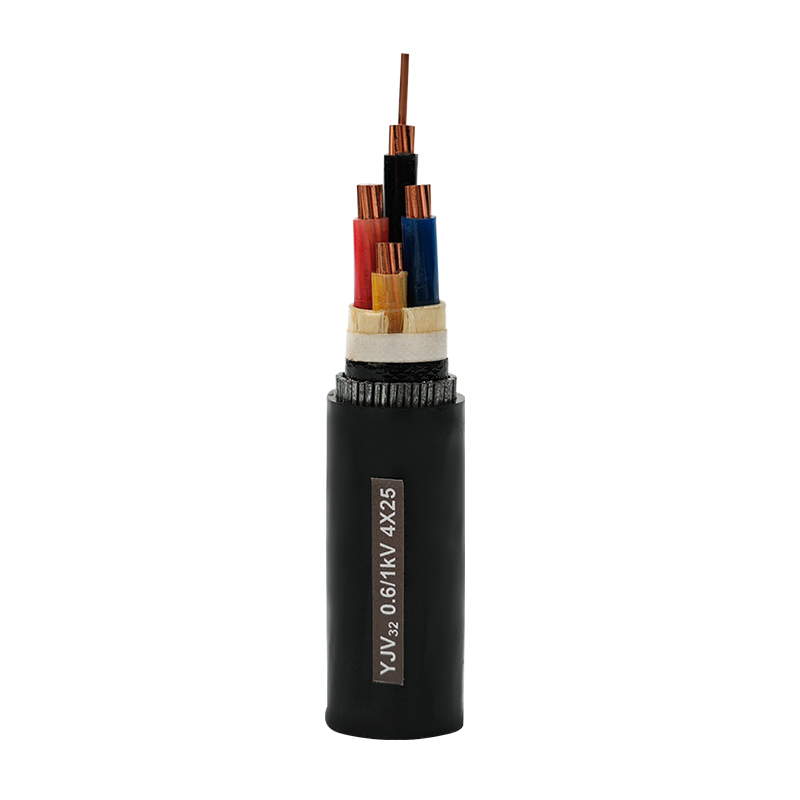

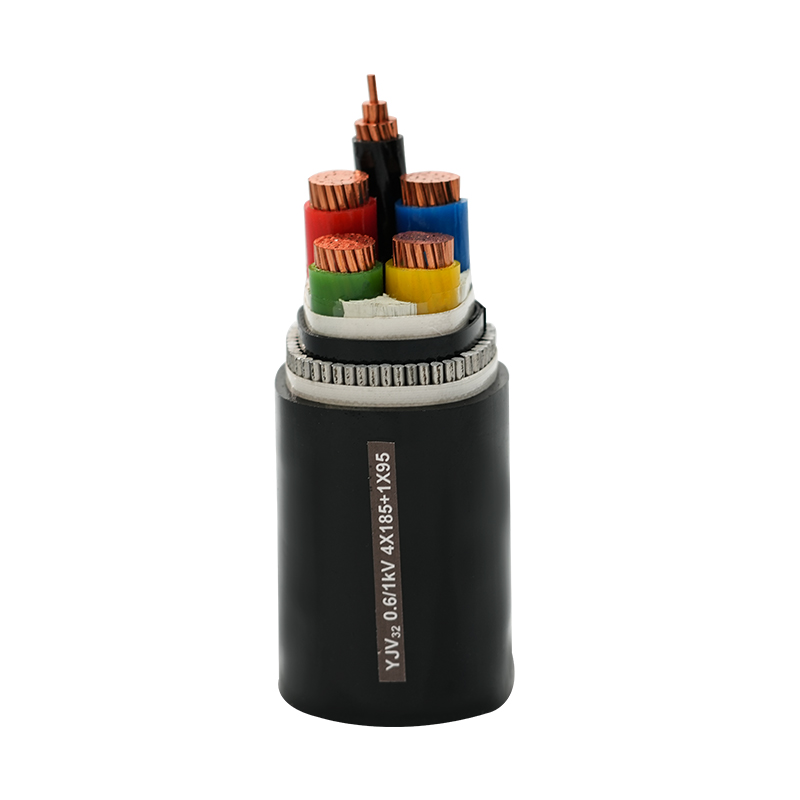

0.6/1KV-XLPE Insulated Power Cable

Product Usage:

The 0.6/1KV-XLPE insulated power cable is a high-performance power transmission line that uses cross-linked polyethylene (XLPE) as the insulating material. Designed for power systems with a rated voltage of 0.6/1 kilovolt, it exhibits outstanding electrical performance, mechanical strength, and thermal resistance. The XLPE insulation layer effectively resists moisture penetration and chemical erosion, ensuring long-term stable operation. It is suitable for power distribution networks in various industrial, commercial, and civil buildings, providing safe and reliable power transmission solutions.

PREV：0.6/1KV-PVC Insulated Power CableNEXT：No next article
Parameter

This product is suitable for fixed installation on power transmission and distribution lines with an AC frequency of 50Hz and a rated voltage of 35kV or below for the purpose of transmitting electrical energy. Compared with polyvinyl chloride (PVC) insulated power cables, this product not only exhibits excellent electrical properties, mechanical properties, heat and aging resistance, environmental stress resistance, and chemical corrosion resistance, but also features a simple structure, lightweight, no limitation on installation height difference, and a long-term operating temperature that can reach up to 90°C.

The cross-linked polyethylene insulated power cables for 35KV and below comply with GB/T12706-2008 (equivalent to IEC60502:2004).

Type

Names of Products

ApplicationOccasion

Cu

Al

YJV

YJLV

Copper core structured, XLPE insulation PVC sheath power cable

Aluminum core structured, XLPE insulation sheath power cable

For laying indoors, in a tunnel or cable trench, it is unable to bear external mechanical forces. Single-core cable in the magnetic  duct is not permissible

ZR-YJV

ZR-YJLV

Copper core structured, XLPE insulated, flame retardant PVC sleeve coated power cable

Aluminum core structured, XLPE insulated, flame-retardant PVC sleeve coated power cable

DDZ-YJVD

DDZ-YJLVD

Copper core structured. XLPE insulated, low-smoke and low-halogen  flame-retardant sleeve coated power cable

Aluminum core structured, XLPE insulated, low smoke and low-halogen  flame-retardant sleeve coated power cable

WDZ-YJE

WDZ-YJLE

Copper core structured, XLPE-insulated, low-smoke and halogen-free flame-retardant sleeve coated power cable

Aluminum core structured. XLPE insulated, low smoke and halogen-free flame-retardant sleeve coated power cable

YJV22

YJLV22

Copper core structured, XLPE-insulated, steel strip armor shielded, PVC sleeve coated power cable

Aluminum core structured, XLPE-insulated, steel strip armor shielded, PVC-sleeve coated power cable

For laying indoors、in the funnel, cable trench, or to bear external mechanical forces, butis unable to bear a large pulling force.

ZR-YJV22

ZR-YJLV22

Copper core structured, XLPE insulated, steel strip armor shielded, flame-retardant PVC sleeve coated power cable

Aluminum core structured, XLPE insulated, steel strip armor shielded, flame-retardant PVC sleeve coated power cable
