Product Characteristics:
The speaker cable employs high-purity oxygen-free copper conductors to ensure efficient transmission of audio signals and reduce signal loss. The outer layer is made of high-quality insulating material and a wear-resistant jacket, providing excellent anti-interference capability and durability. The cable is designed to be flexible, making it easy to route in various installation environments.
Application:
It is mainly used to connect audio systems with speakers and is suitable for various audio systems such as home theaters, conference rooms, and performance venues, ensuring clear and lifelike sound quality and enhancing the overall listening experience.

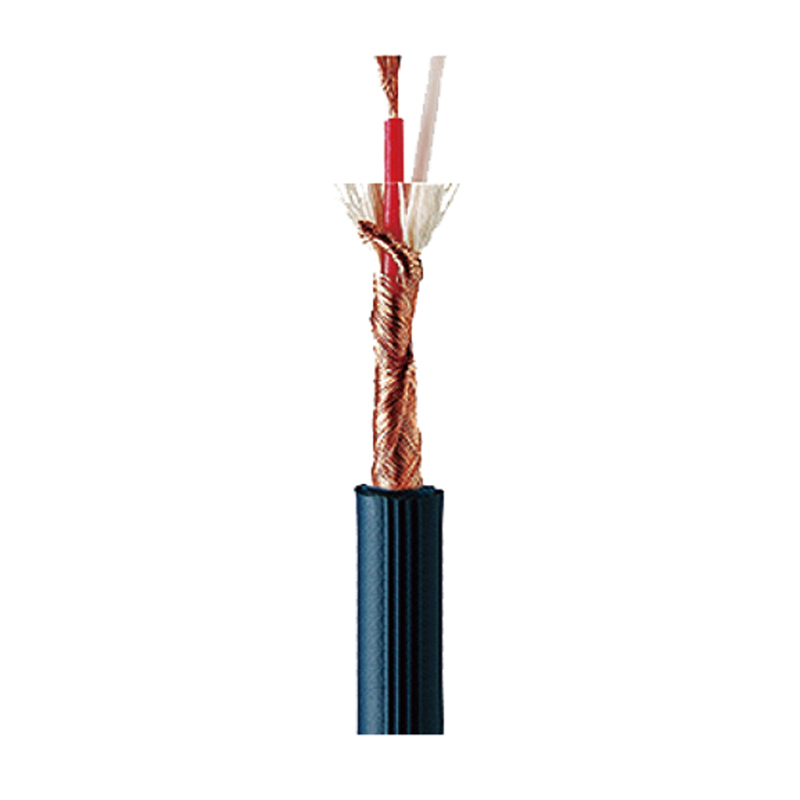

RCEVJP1 Spiral Shielded Microphone Cable
|
Number of cores × nominal cross section
mm²
|
Number of conductors
|
Conductor cross section mm²
|
DC resistance of conductor at 20℃
Q/km
|
Approximate outer diameter
mm
|
Approximate Weight
kg/km
|
|
2×16/0.15
|
2
|
0.3
|
60.1
|
6.0
|
41
|
|
2×37/0.10
|
2
|
0.3
|
59.4
|
6.0
|
42
|
|
2×56/0.10
|
2
|
0.45
|
39.2
|
6.5
|
52
|
|
4×16/0.15
|
4
|
0.3
|
60.1
|
6.9
|
62
|
This series of products uses high-quality oxygen-free copper wire (OFC) as the conductor, specially formulated polyvinyl chloride insulation, elastic PVC outer sheath, and the shielding layer is wound with high-quality oxygen-free copper (OFC), which has excellent anti-interference ability. This type of microphone cable is suitable for fixed installation in various occasions.

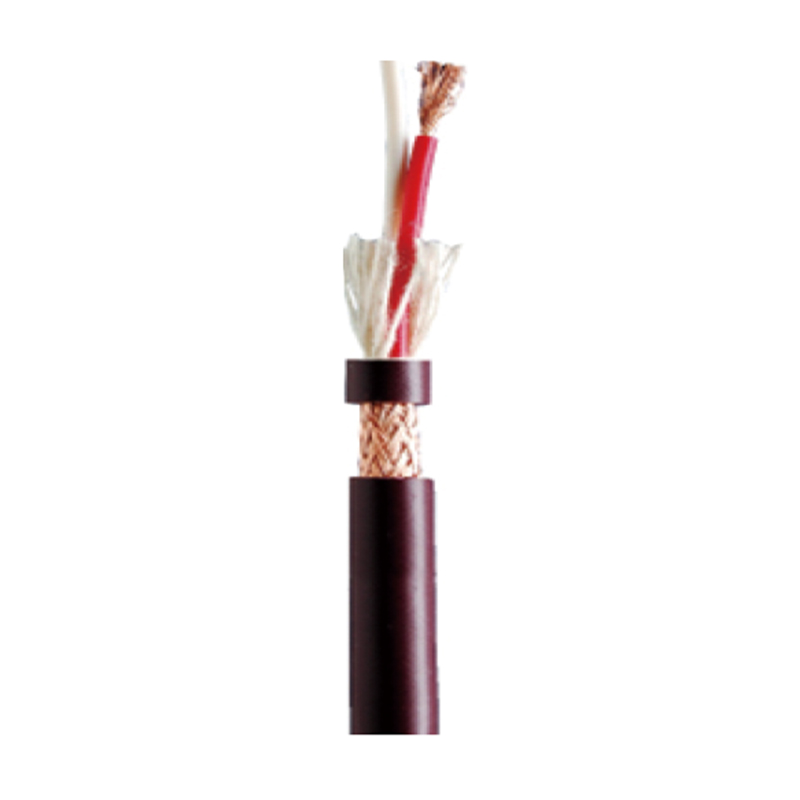

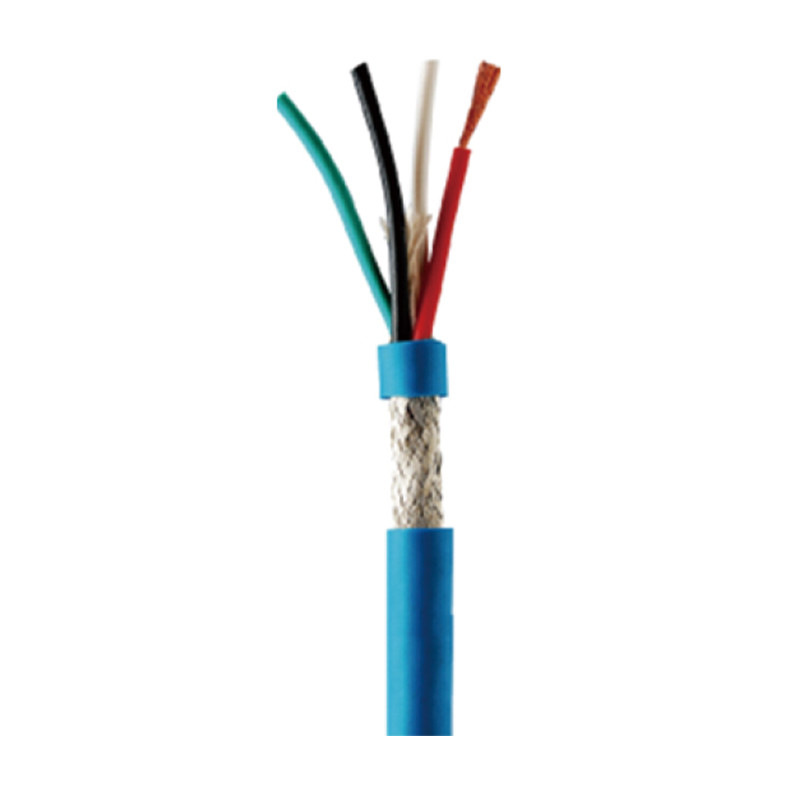

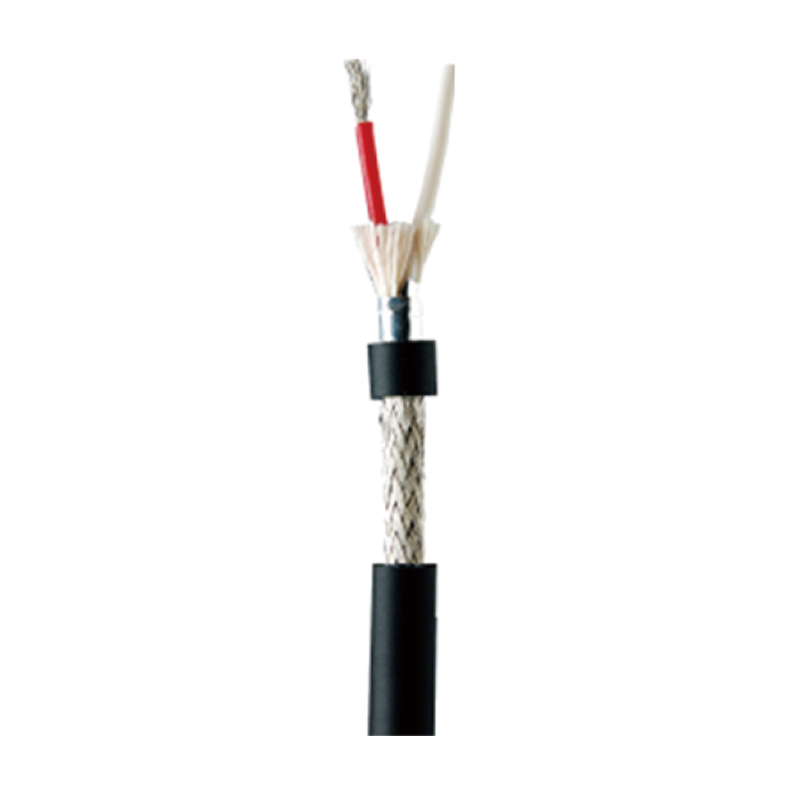

RCEVJP Braided Shielded Microphone Cable
|
Number of cores × nominal cross section
mm 2
|
Number of conductors
|
Conductor cross section
mm²
|
DC resistance of conductor at 20℃
Q/km
|
Approximate outer diameter
mm
|
Approximate Weight
kg/km
|
|
2×16/0.15
|
2
|
0.3
|
60.1
|
6.0
|
47
|
|
2×37/0.10
|
2
|
0.3
|
59.4
|
6.0
|
47
|
|
2×56/0.10
|
2
|
0.45
|
39.2
|
6.5
|
64
|
|
4×16/0.15
|
2
|
0.3
|
60.1
|
7.0
|
71
|
This series of products uses high-quality oxygen-free copper wire (OFC) as conductor, specially formulated polyvinyl chloride insulation, elastic PVC outer sheath, and shielding layer braided with high-quality oxygen-free copper (OFC). However, this type of cable has excellent anti-interference ability, certain anti-bending performance, good sound restoration, and strong anti-low-frequency interference ability. It is suitable for some mobile installation occasions.

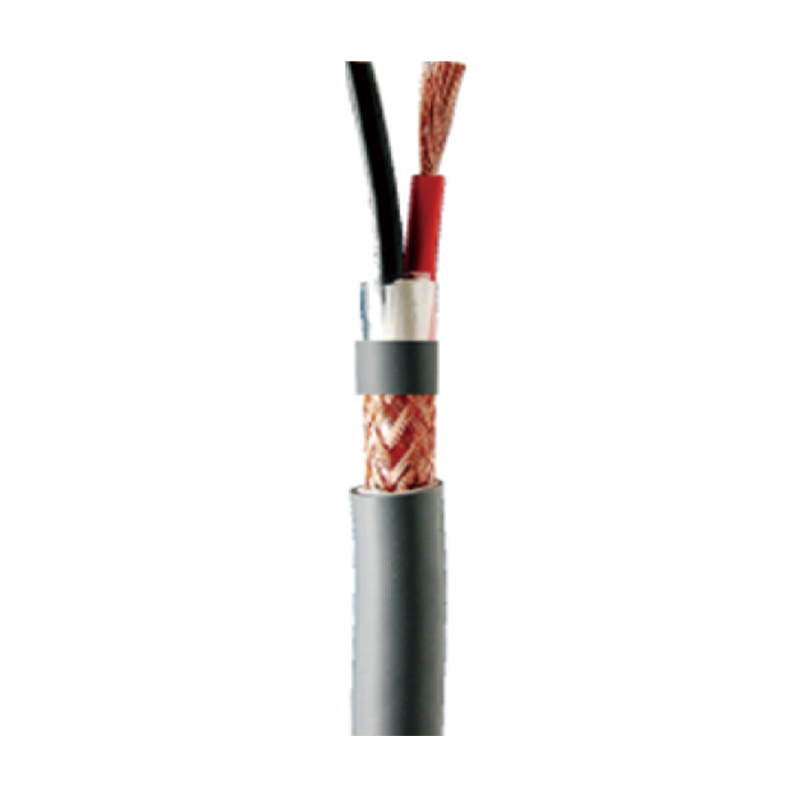

RCEYJH1 Premium Double-Wound Microphone Cable
|
Number of cores × nominal cross section
mm²
|
Number of conductors
|
Conductor cross section
mm²
|
DC resistance of conductor at 20℃
Q/km
|
Approximate outer diameter
mm
|
Approximate Weight
kg/km
|
|
2×58/0.08
|
2
|
0.3
|
59.2
|
6.5
|
58
|
This series of products uses high-quality oxygen-free copper wire (OFC) kneaded into conductors, specially formulated polyvinyl chloride insulation, elastic PVC outer sheath, and the shielding layer is wound with high-quality oxygen-free copper (OFC). It has excellent anti-interference ability. Because it uses 58 strands of high-quality (OFC) copper wire, the treble is good. It is suitable for use in some occasions that require high anti-interference ability.
