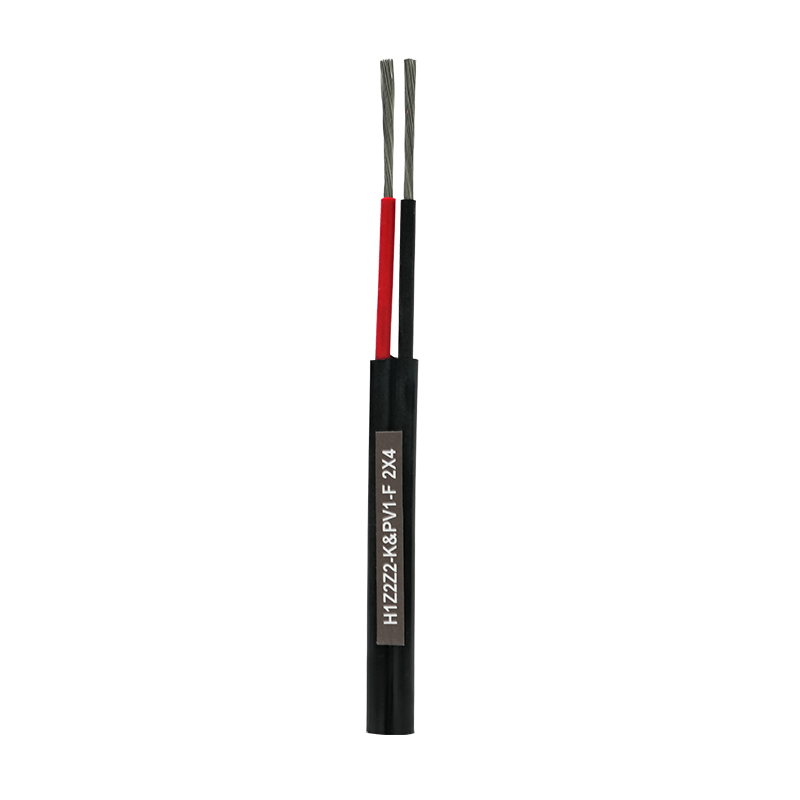

Photovoltaic Cables

Product Usage:

Photovoltaic cables are specialized cables designed for solar photovoltaic systems, featuring weather resistance, UV resistance, and abrasion resistance. They can operate stably in harsh outdoor environments for extended periods, withstanding the impacts of high and low temperatures as well as humidity changes. Photovoltaic cables use special insulation materials and sheaths to effectively resist aging caused by direct sunlight and severe weather conditions, ensuring efficient and safe transmission of electrical energy to inverters, energy storage devices, or the grid. These cables also meet relevant international safety standards and certifications, making them a key component in building reliable and efficient photovoltaic power generation systems.

PREV：No previous articleNEXT：No next article
Parameter

Product Characteristics and Applications:
This product is low-smoke, halogen-free, and flame-retardant, with excellent cold resistance, UV resistance, ozone resistance, and weatherability. It is mainly used in solar connection equipment, solar photovoltaic power stations, photovoltaic systems, and other fields. It can be applied in deserts with large diurnal temperature differences, coastal areas with salt fog and humidity, and high-altitude regions with strong radiation.

PPP 59074A:2019 (PV1-F): PPP 59074A:2019 (PV1-F)
EN 50618:2014 (H1Z2Z2-K): EN 50618:2014 (H1Z2Z2-K)
IEC 62930(ed.1) (62930 IEC 131): IEC 62930 (Edition 1) (62930 IEC 131)

model Specification Approximate outer diameter of cable
(mm)		 Approximate cable weight
Kg/Km		 20℃ Conductor DC resistance
Ω/Km		 Cut-off A
Single-core cable hanging in the air Single-core cable placed on the surface of the object Multiple adjacent cables are placed on the surface of an object
PVI-F 1×1.5 mm² 4.4 31.8 13.7 31 30 twenty four
PVI-F 1×2.5 mm² 4.8 42.7 8.21 42 40 33
PVI-F 1×4 mm² 5.3 57 5.09 57 54 45
PVI-F 1×6 mm² 5.9 77.5 3.39 72 69 58
PVI-F 1×10 mm² 6.8 117.3 1.95 98 96 80
PVI-F 1×16 mm² 9.3 193.2 1.24 132 130 107
PVI-F 1×25 mm² 11.1 287.8 0.795 183 174 138
PVI-F 1×35 mm² 12.4 381.1 0.565 227 215 171
PVI-F 1×50 mm² 14.6 544.1 0.393 287 273 209
PVI-F 2×1.5 mm² 4.4×9.0 63.7 13.7 31 30 twenty four
PVI-F 2×2.5 mm² 4.8×9.8 85.4 8.21 42 40 33
PVI-F 2×4 mm² 5.3×10.8 114.1 5.09 57 54 45
PVI-F 2×6 mm² 5.9×12.0 154.9 3.39 72 69 58
PVI-F 2×10 mm² 6.8×13.8 234.6 1.95 98 96 80
PVI-F 2×16 mm² 9.3×18.8 378.8 1.24 132 130 107
PVI-F 2×25 mm² 11.1×22.4 566.1 0.795 183 174 138
PVI-F 2×35 mm² 12.4×25 751.1 0.565 227 215 171
PVI-F 2×50 mm² 14.6×29.4 1074.7 0.393 287 273 209
H1Z2Z2-K 1×1.5 mm² 4.8 35.9 13.7 31 30 twenty four
HJZ222-K 1×2.5 mm² 5.2 47.2 8.21 42 40 33
HJZ222-K 1×4 mm² 5.7 61.9 5.09 57 54 45
HJZ222-K 1×6 mm² 6.3 82.9 3.39 72 69 58
HJZ222-K 1×10 mm² 7.2 123.5 1.95 98 96 80
HJZ222-K 1×16 mm² 9.7 201.6 1.24 132 130 107
HJZ222-K 1×25 mm² 11.7 303.1 0.795 183 174 138
HJZ222-K 1×35 mm² 13.2 404.1 0.565 227 215 171
HJZ222-K 1×50 mm² 15.4 571 0.393 287 273 209
HJZ222-K 2×1.5 mm² 4.8×9.8 71.8 13.7 31 30 twenty four
HJZ222-K 2×2.5 mm² 5.2×10.6 94.3 8.21 42 40 33
HJZ222-K 2×4 mm² 5.7×11.6 123.8 5.09 57 54 45
HJZ222-K 2×6 mm² 6.3×12.8 165.7 3.39 72 69 58
HJZ222-K 2×10 mm² 7.2×14.6 247 1.95 98 96 80
HJZ222-K 2×16 mm² 9.7×19.6 395.6 1.24 132 130 107
HJZ222-K 2×25 mm² 11.7×23.6 596.6 0.795 183 174 138
HJZ222-K 2×35 mm² 13.2×26.6 797 0.565 227 215 171
HJZ222-K 2×50 mm² 15.4×31.0 1128.6 0.393 287 273 209
62930 IEC 131 1 × 1.5 mm² 4.8 35.9 13.7 31 30 twenty four
62930 IEC 131 1 × 2.5 mm² 5.2 47.2 8.21 42 40 33
62930 IEC 131 1 × 4 mm² 5.7 61.9 5.09 57 54 45
62930 IEC 131 1 × 6 mm² 6.3 82.9 3.39 72 69 58
62930 IEC 131 1 × 10 mm² 7.2 123.5 1.95 98 96 80
62930 IEC 131 1 × 16 mm² 9.7 201.6 1.24 132 130 107
62930 IEC 131 1 × 25 mm² 11.7 303.1 0.795 183 174 138
62930 IEC 131 1 × 35 mm² 13.2 404.1 0.565 227 215 171
62930 IEC 131 1×50 mm² 15.4 571 0.393 287 273 209
62930 IEC 131 2×1.5 mm² 4.8×9.8 71.8 13.7 31 30 twenty four
62930 IEC 131 2×2.5 mm² 5.2×10.6 94.3 8.21 42 40 33
62930 IEC 131 2×4 mm² 5.7×11.6 123.8 5.09 57 54 45
62930 IEC 131 2×6 mm² 6.3×12.8 165.7 3.39 72 69 58
62930 IEC 131 2×10 mm² 7.2×14.6 247 1.95 98 96 80
62930 IEC 131 2×16 mm² 9.7×19.6 395.6 1.24 132 130 107
62930 IEC 131 2×25 mm² 11.7×23.6 596.6 0.795 183 174 138
62930 IEC 131 2×35 mm² 13.2×26.6 797 0.565 227 215 171
62930 IEC 131 2×50 mm² 15.4×31.0 1128.6 0.393 287 273 209
