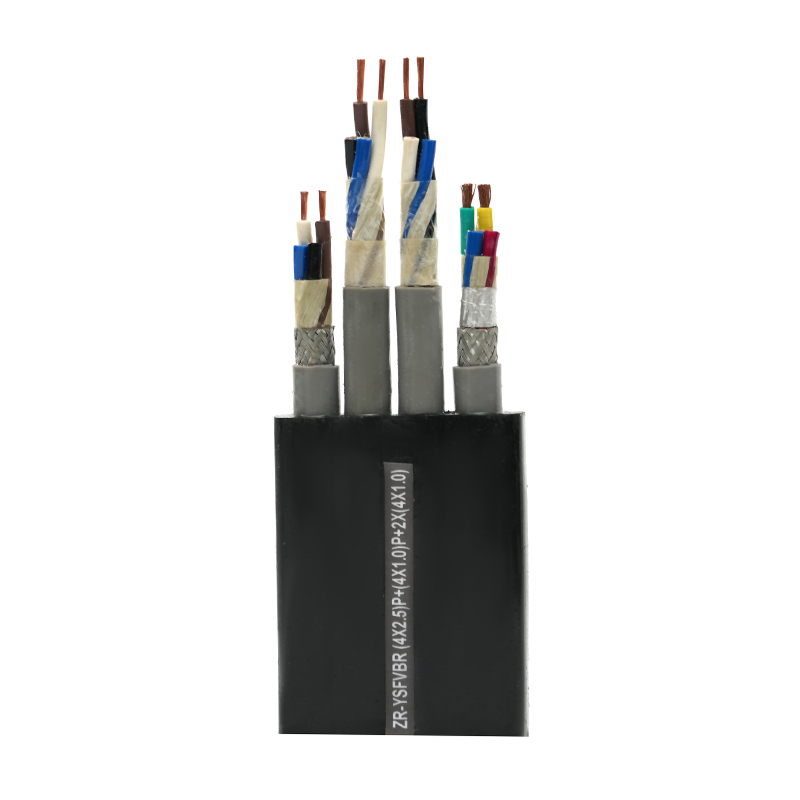

Flat Ribbon Cables for Film and Television Lighting and Stage Machinery

Product Usage:

Flat ribbon cables are specifically designed for film and stage lighting as well as mechanical applications, featuring compactness, lightness, and high integration. These cables are composed of multiple fine wires arranged side by side to form a flat shape, facilitating flexible wiring and connections in limited spaces. They can withstand high-intensity lighting and mechanical movements, ensuring stable and reliable signal transmission, and are suitable for various complex film shooting and stage performance scenarios.

PREV：Power Cables for Film and Television Lighting Equipment and Stage MachineryNEXT：No next article
Parameter

Product Characteristics and Application:
This product is suitable for transmitting power and signals in devices such as stage lighting poles and mobile stage machinery equipment with an AC rated voltage (Uo/U) of 450/750V or less. The product is widely used for structured cabling in television stations, theaters, sports stadiums, and various cultural performance venues.

Flat ribbon cable for film and television lighting and stage machinery complies with standard Q/3210.

Number of cores × nominal cross section

mm 2

 Approximate outer diameter mm Approximate weight kg/km
ZR-YSFVBR WDZ-YSFEBR
WDZ-YSFUBR		 WDZ-YSFGBR
FH-YSFGBR		 ZR-YSFVBR WDZ-YSFEBR
WDZ-YSFUBR		 WDZ-YSFGBR
FH-YSFGBR
7×1.5 31.6×5.2 27.8×5.2 36.6×6.8 327.0 296.4 428.0
8×1.5 37.0×5.2 31.2×5.2 42.0×6.8 380.8 334.1 490.8
9×1.5 40.0×5.2 34.6×5.2 46.0×6.8 415.4 371.8 539.8
10×1.5 45.4×5.2 38.0×5.2 51.4×6.8 469.2 409.6 602.6
11×1.5 48.4×5.2 42.4×5.2 55.4×6.8 503.7 455.3 651.6
12×1.5 53.8×5.2 45.8×5.2 60.8×6.8 557.6 493.1 714.5
13×1.5 56.8×5.2 49.2×5.2 64.8×6.8 592.1 530.8 763.5
14×1.5 62.2×5.2 52.6×5.2 70.2×6.8 645.9 568.5 826.3
15×1.5 65.2×5.2 56.0×5.2 74.2×6.8 680.4 606.3 875.3
16×1.5 70.6×5.2 60.4×5.2 79.6×6.8 734.3 652.1 938.2
17×1.5 73.6×5.2 63.8×5.2 83.6×6.8 768.8 689.8 987.2
18×1.5 79.0×5.2 67.2×5.2 89.0×6.8 822.6 727.5 1050
19×1.5 82.0×5.2 70.6×5.2 93.0×6.8 857.1 765.3 1099
20×1.5 87.4×5.2 74.0×5.2 98.4×6.8 911 803 1161.9
7×2.5 35.0×6.2 30.8×5.8 41.4×8.0 455.7 396.2 593
8×2.5 40.8×6.2 34.6×5.8 47.4 ×8.0 528.5 447.4 678.7
9×2.5 44.4×6.2 38.4×5.8 52.2×8.0 580.1 498.7 750.5
10×2.5 50.2×6.2 42.2×5.8 58.2×8.0 652.9 549.9 836.2
11×2.5 53.8×6.2 47.2 ×5.8 63.0×8.0 704.6 611.9 908
12×2.5 59.6×6.2 51.0×5.8 69.0×8.0 777.3 663.1 993.7
13×2.5 63.2×6.2 54.8×5.8 73.8×8.0 829 714.3 1065.5
14×2.5 69.0×6.2 58.6×5.8 79.8×8.0 901.8 765.5 1151.2
15×2.5 72.6×6.2 62.4×5.8 84.6×8.0 953.4 816.7 1223
16×2.5 78.4×6.2 67.4×5.8 90.6×8.0 1026.2 878.7 1308.7
17×2.5 82.0×6.2 71.2×5.8 95.4×8.0 1077.8 929.9 1380.5
18×2.5 87.8×6.2 75.0×5.8 101.4×8.0 1150.6 981.1 1466.2
19×2.5 91.4×6.2 78.8×5.8 106.2×8.0 1202.3 1032.3 1538
20×2.5 97.2×6.2 82.6×5.8 112.2×8.0 1275.1 1083.5 1623.7
21×2.5 110.2×6.2 93.90×5.8 126.4×8.0 1448.6 1263.5 1775
22×2.5 116.0×6.2 98.00×5.8 132.4×8.0 1522.6 1320.3 1859.3
23×2.5 120.5×6.2 102.10×5.8 138.1 ×8.0 1584.8 1377.2 1940.5
24×2.5 126.3×6.2 106.20×5.8 144.1×8.0 1658.8 1434 2024.8
25×2.5 130.8×6.2 110.30×5.8 149.8×8.0 1721 1490.8 2106
26×2.5 136.6×6.2 114.40×5.8 155.8×8.0 1795 1547.6 2190.4
27×2.5 141.1×6.2 118.50×5.8 161.5×8.0 1857.2 1604.5 2271.6
28×2.5 146.9×6.2 122.60×5.8 167.5×8.0 1931.2 1661.3 2355.9
29×2.5 151.4×6.2 126.70×5.8 173.2×8.0 1993.4 1718.1 2437.1
30×2.5 157.2×6.2 130.80×5.8 179.2×8.0 2067.4 1774.9 2521.4
31×2.5 161.2×6.2 134.9×5.8 184.9×8.0 2129.6 1831.8 2602.6
32×2.5 167.5×6.2 139.00×5.8 190.9×8.0 2203.6 1888.6 2686.9
7×4 42.6×7.2 38.4×6.8 46.2×8.6 669.2 598.6 762.8
8×4 49.4×7.2 43.2×6.8 52.8×8.6 772.8 676.8 871.8
9×4 54.0×7.2 48.0×6.8 58.2×8.6 851.8 755.1 965.8
10×4 60.8×7.2 52.8×6.8 64.8×8.6 955.4 833.4 1074.8
11×4 65.4×7.2 58.8×6.8 70.2×8.6 1034.4 924.3 1168.8
12×4 72.2×7.2 63.6×6.8 76.8×8.6 1138 1002.6 1277.8
13×4  76.8×7.2 68.4×6.8 82.2×8.6 1217.0 1080.9 1371.8
14×4 83.6×7.2 73.2×6.8 88.8×8.6 1320.6 1159.2 1480.8
15×4 88.2×7.2 78.0×6.8 94.2×8.6 1399.6 1237.4 1574.8
16×4 95.0×7.2 84.0×6.8 100.8×8.6 1503.2 1328.4 1683.8
17×4 99.6×7.2 88.8×6.8 106.2×8.6 1582.2  1406.6 1777.8
18×4 106.4×7.2 93.6×6.8 112.8×8.6 1685.8 1484.9 1886.8
19×4 111.0×7.2 98.4×6.8 118.2×8.6 1764.8 1563.2 1980.8
20×4 117.8×7.2 103.2×6.8 124.8×8.6 1868.4 1641.5 2089.8
21×4 131.8×7.2 115.50×6.8 139.6×8.6  2085.2 1875.7 2267.5
22×4 138.6×7.2 120.60×6.8 146.2×8.6 2190 1960.8 2374.9
23×4     144.1×7.2 125.70×6.8 152.5×8.6 2281.2 2045.9 2479.0
24×4 150.9×7.2 130.80×6.8 159.1×8.6 2386 2131 2586.5
25×4 156.4×7.2  135.90×6.8 165.4×8.6 2477.1 2216.1 2690.6
26×4 163.2×7.2 141.00×6.8 172.0×8.6 2581.9 2301.2 2798
27×4  168.7×7.2 146.10×6.8 178.3×8.6 2673.0 2386.3 2902.1
28×4 175.5×7.2 151.20×6.8 184.9×8.6 2777.8 2471.4 3009.5
7×6 48.4×8.0 43.1×7.8 52.0×9.4 895.2 816.1 996.9
8×6 55.8×8.0 48.5×7.8 59.2×9.4 1029.1 923.5 1136.2
9×6 61.4×8.0 53.9×7.8 65.6×9.4 1140.7 1031 1264.6
10×6 68.8×8.0 59.3×7.8 72.8×9.4 1274.6 1138.4 1403.9
11×6 74.4×8.0 66.0×7.8 79.2×9.4 1386.2 1261.5 1532.3
12×6 81.8×8.0 71.4×7.8 86.4×9.4 1520.1 1369 1671.6
13×6 87.4×8.0 76.8×7.8 92.8×9.4 1631.6 1476.4 1800
14×6 94.8×8.0 82.2×7.8 100.0×9.4 1765.5 1583.8 1939.3
15×6 100.4×8.0 87.6×7.8 106.4×9.4 1877.1 1691.3 2067.7
16×6 107.8×8.0 94.3×7.8 113.6×9.4 2011 1814.4 2207
17×6 113.4×8.0 99.7×7.8 120.0×9.4 2122.6 1921.8 2335.3
18×6 120.8×8.0 105.1×7.8 127.2×9.4 2256.5 2029.3 2474.6
19×6 126.4×8.0 110.5×7.8 133.6×9.4 2368.1 2136.7 2603.0
20×6 133.8×8.0 115.9×7.8 140.8×9.4 2502 2244.1 2742.3
21×6   148.8×8.0 128.90×7.8 156.6×9.4 2759.5 2529.6 2950.9
22×6 156.2×8.0 134.60×7.8 163.8×9.4 2894.5 2644.8 3088.3
23×6 162.7×8.0 140.30×7.8 171.1×9.4 3019.1 2759.9 3226.9
24×6 170.1×8.0 146.00×7.8 178.3×9.4 3154.2 2875.1 3364.2
25×6 176.6×8.0 151.70×7.8 185.6×9.4 3278.7 2990.2 3502.8
26×6 184.0×8.0 157.40×7.8 192.8×9.4 3413.8 3105.4 3640.2
7×10 61.5×10.3 56.7×10.3 67.9×12.1 1423.2 1346.5 1624.3
8×10 70.6×10.3 63.8×10.3 77.2×12.1 1631.5 1522.9 1849.3
9×10 77.9×10.3 70.9×10.3 85.7×12.1 1811.1 1699.3  2060.3
10×10 87.0×10.3 78.0×10.3 95.0×12.1 2019.4 1875.7 2285.3
11×10 94.3×10.3 86.9×10.3 103.5×12.1 2199.0 2080.8  2496.3
12×10 103.4×10.3 94.0×10.3 112.8×12.1 2407.3 2257.2 2721.3
13×10 110.7×10.3 101.1×10.3 121.3×12.1 2586.9 2433.6 2932.3
14×10 119.8×10.3 108.2×10.3 130.6×12.1 2795.2 2610 3157.3
15×10 127.1×10.3 115.3×10.3 139.1×12.1 2974.8 2786.4 3368.3
16×10 136.2×10.3 124.2×10.3 148.4×12.1 3183.1 2991.5 3593.3
17×10   143.5×10.3 131.3×10.3 156.9×12.1 3362.7 3167.9 3804.3
18×10 152.6×10.3 138.4×10.3 166.2×12.1 3571 3344.3 4029.3
19×10 159.9×10.3 145.5×10.3 174.7×12.1 3750.6 3520.7 4240.3
20×10 169.0×10.3 152.6×10.3 184.0×12.1 3958.9  3697.1 4465.3
