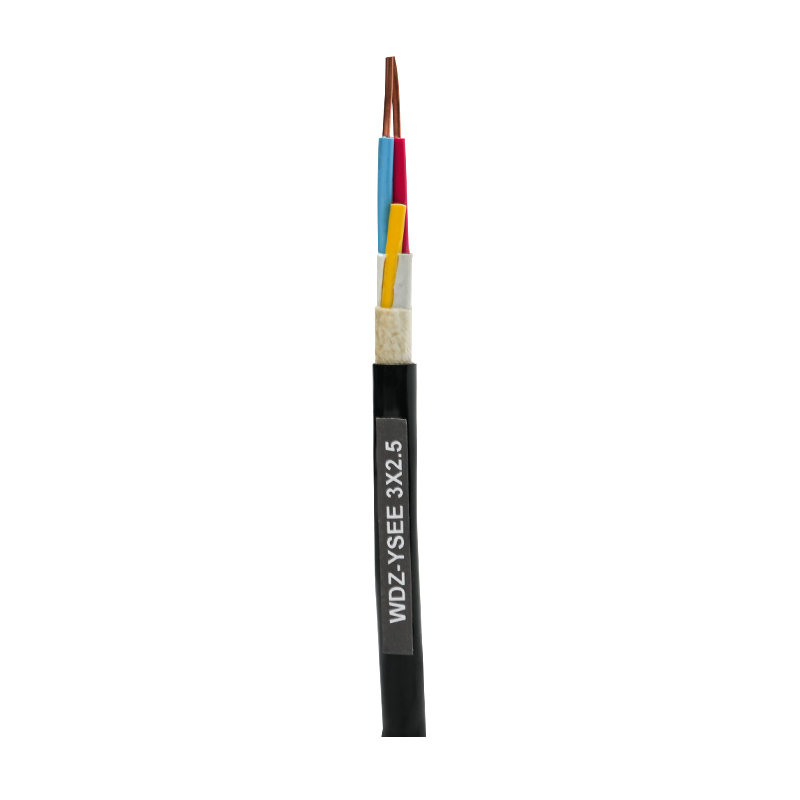

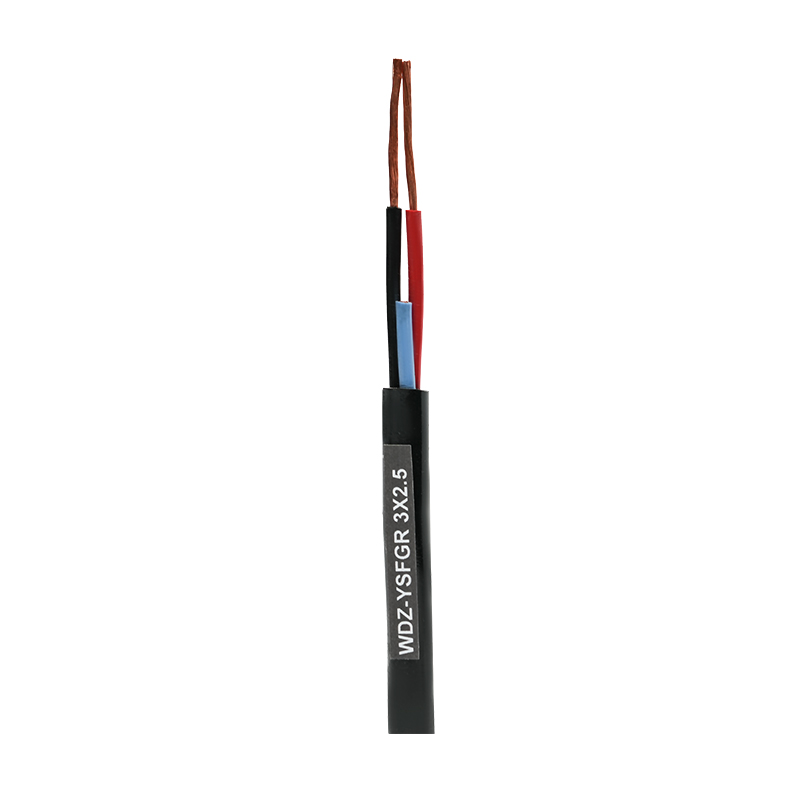

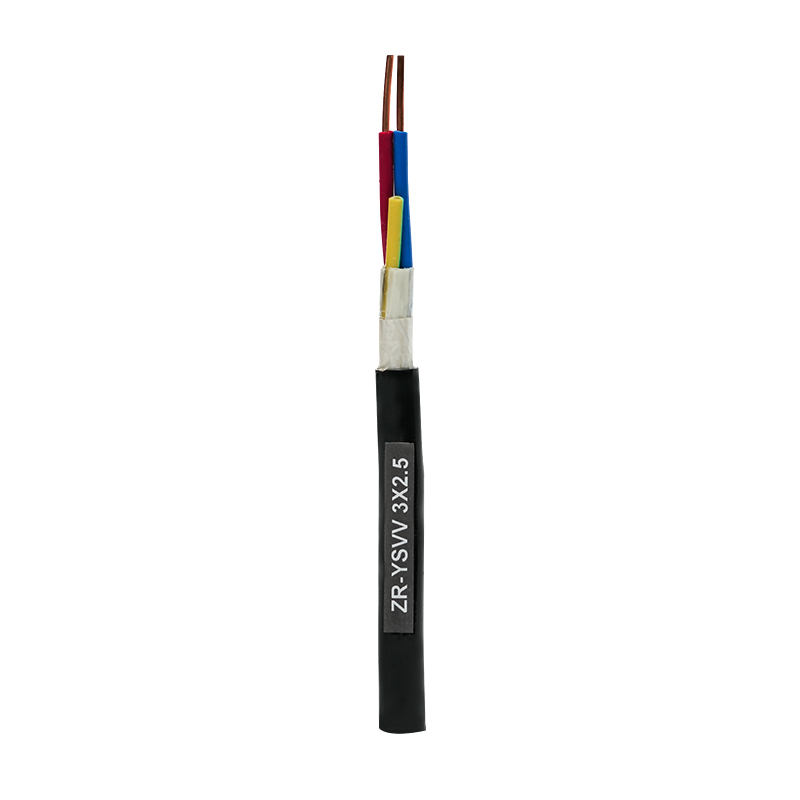

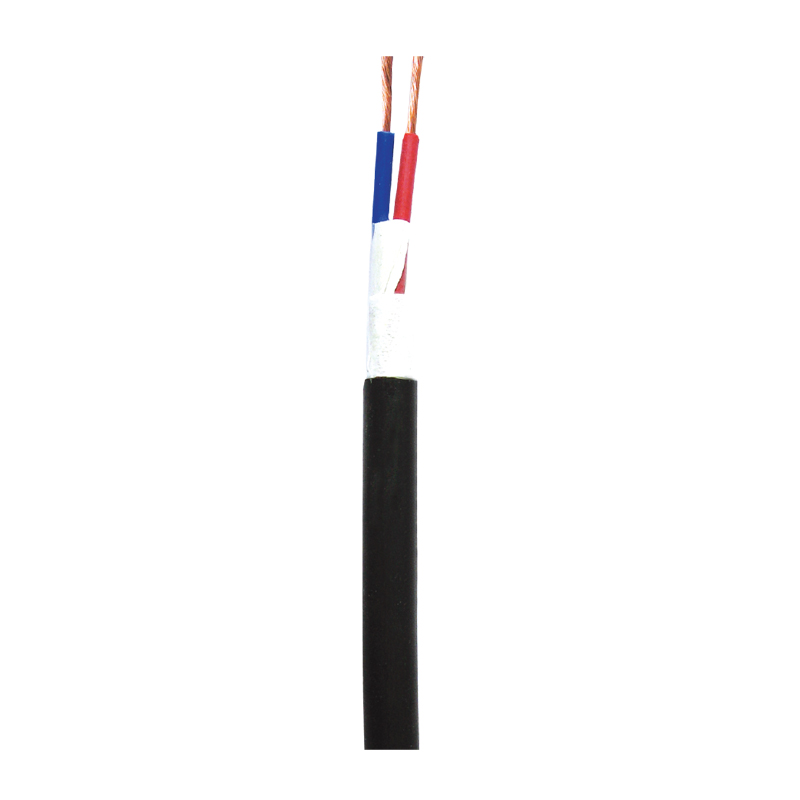

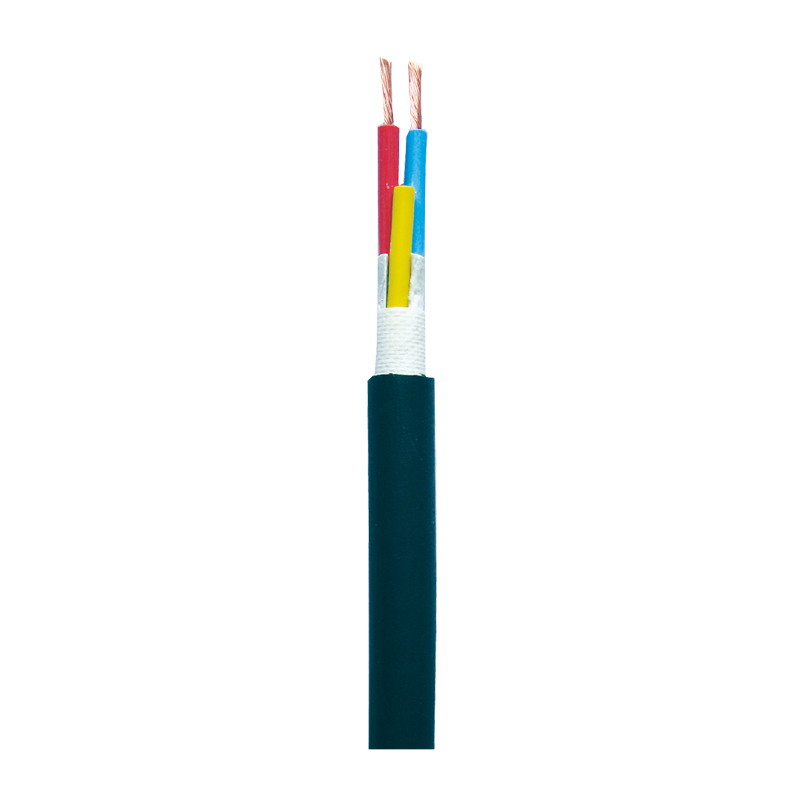

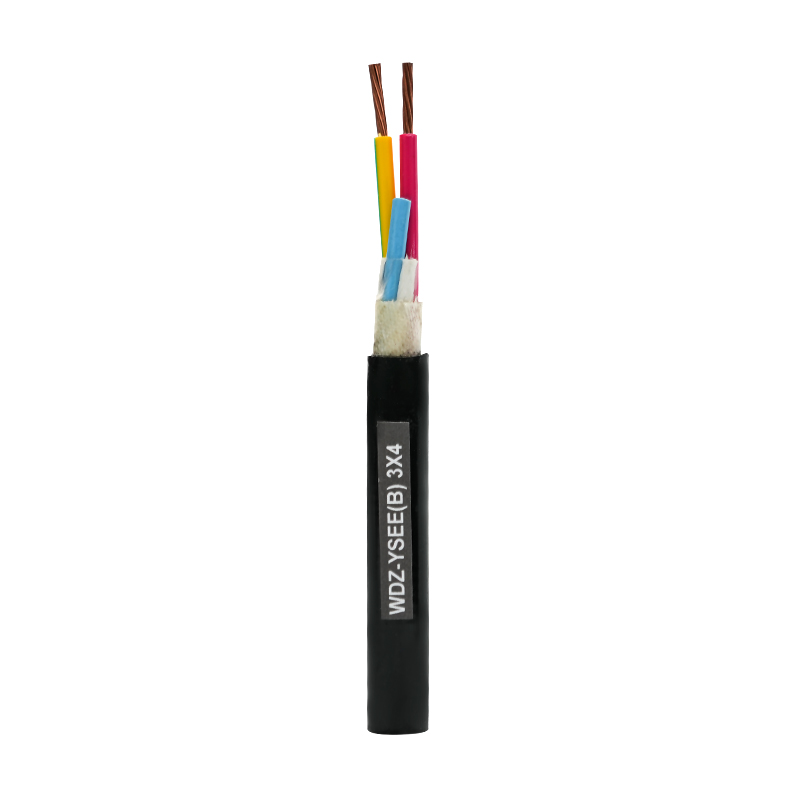

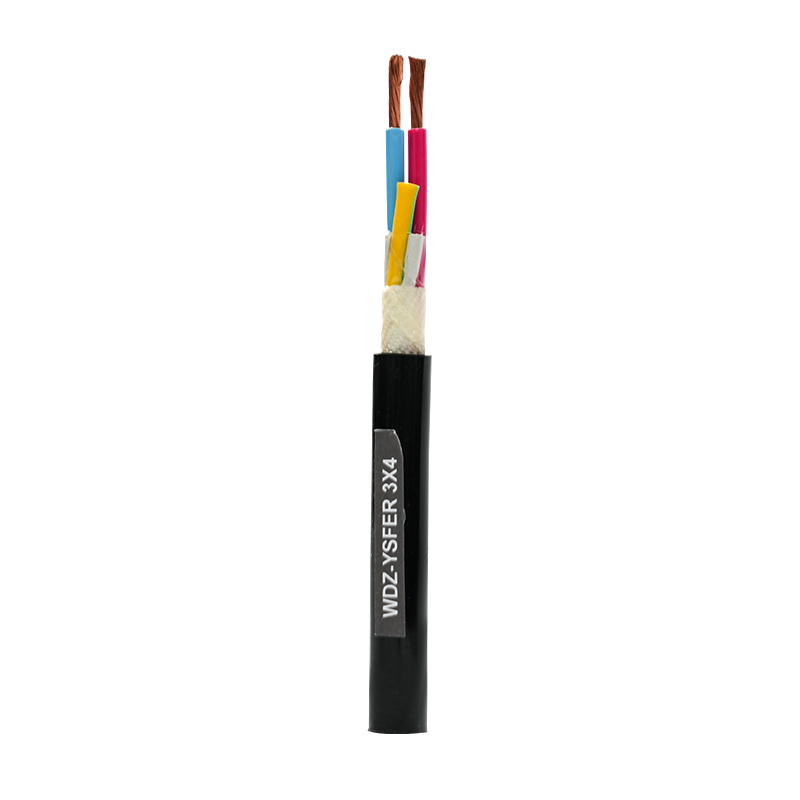

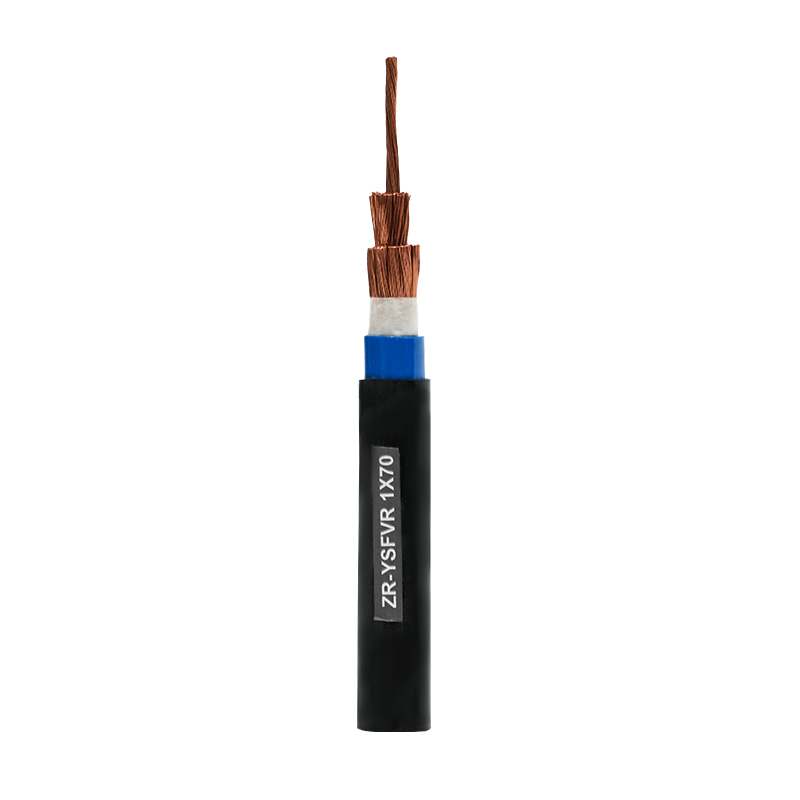

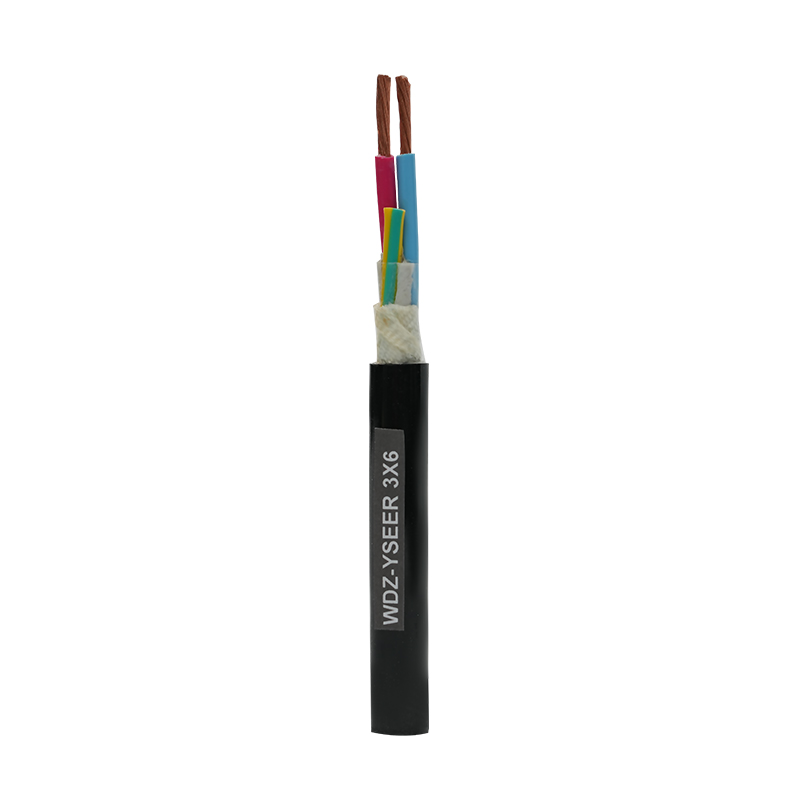

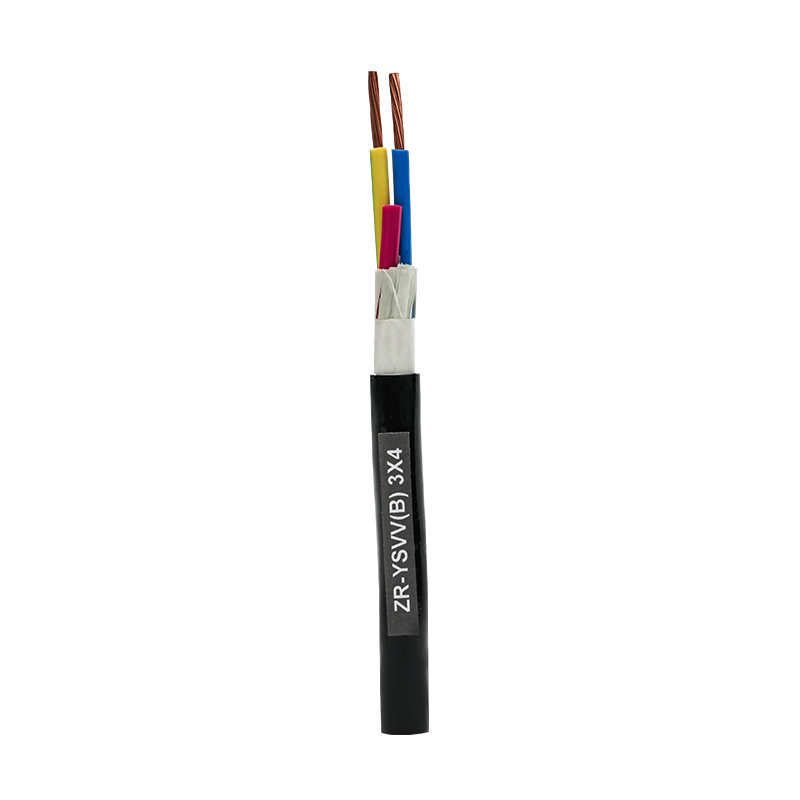

Power Cables for Film and Television Lighting Equipment and Stage Machinery

Product Usage:

Power cables specifically designed for providing stable power transmission to film and stage lighting equipment and mechanical systems use high-quality insulating materials and wear-resistant jackets, ensuring good electrical performance and mechanical strength in harsh environments. These cables can withstand high current loads, providing continuous and stable power supply to support the normal operation of lighting equipment while meeting the high-power demands of stage mechanics.

PREV：Shielded Control Cables for Film and Television Lighting Equipment and Stage MachineryNEXT：Flat Ribbon Cables for Film and Television Lighting and Stage Machinery
Parameter

Product Characteristics and Application:
This product is suitable for transmitting power energy in devices such as stage lighting sources, electrical equipment, and stage machinery with AC rated voltages of (U/U) 0.6/1KV and 450/750V or less. The product is widely used for power energy transmission in television stations, theaters, sports stadiums, and various cultural performance venues.

Power cable for film and television lighting equipment and stage machinery complies with standard Q/321084KLB08.

Number of cores Number of cores x
nominal cross section
mm		 Approximate outer diameter mm Approximate weight kg/km
ZR-YSW
ZR- YSWV(B)
ZR-YSYJV
ZR-YSYJV(B)
DDZ-YSW
DDZ-YSW(B)
WDZ-YSYJE
WDZ-YSYJE(B)
WDZ-YSEE
WDZ-YSEE(B)		 ZR-YSFVR
ZR-YSWVR
ZR-YSYJVR
DDZ- YSWR
WDZ-YSYJER
WDZ-YSEER
WDZ-YSFER
WDZ-YSFUR
WDZ-YSFGR
FH-YSFGR		 ZR- YSW
ZR-YSWV(B)
ZR- YSYJV
ZR-YSYJV(B)
DDZ-YSW
DDZ-YSW(B)
WDZ-YSYJE
WDZ- YSYJE(B)
WDZ-YSEE
WDZ-YSEE(B)		 ZR-YSFVR
ZR-YSWVR
ZR-YSYJVR
DDZ-YSWVR
WDZ- YSYJER
WDZ- -YSEER
WDZ- YSFER
WDZ-YSFUR
WDZ-YSFGR
FH-YSFGR
Single core 1x2.5 6.3 6.7 65.7 69.6
1x4.0 7.2 7.7 90.8 96.4
1x6.0 7.6 8.3 113.1 121.5
1x10 8.8 9.2 161.6 167.1
1x16 9.8 10.6 225.1 237.3
1x25 11.4 12.2 330.7 340.2
1x35 12.4 13.4 427.7 444.8
1x50 14.4 15.3 571.1 605.5
1x70 16.1 17.6 778.9 834
1x95 18.4 19.7 1062 1095
1x120 19.9 21.6 1305.6 1359.9
1x150 twenty two 23.8 1604.4 1684.4
1x185 24.2 25.7 1990.2 2003
1x240 26.9 29.0  2566.7 2621.1
1x300 32.5 34.5 3391.5 3414.1
2 core 2x1.5 9.4 10.2 110.2 122.5
2x2.5 10.2 11 139.5 151.1
2x4 12 13 198.2 215.4
2x6 12.8 14.2 247.1 273.2
2x10 15.5 16.3 364.3 381.3
2x16 17.7 19.3 516.8 556.1
2x25 21.1 22.7 768.5 806.3
2x35 23.1 25.3 985.8 1057.8
2x50 21.3 29.3 1188 1449
2x70 23.7 33.9 1617.1 1991.1
2x95 26.7 38.3 2181.9 2616.2
2x120 29.1 41.9 2685.3 3225.6
2x150 32.1 46.3 3299.7 3995.5
2x185 35.5 50.3 4108.4 4760.9
3-core 3x1.5 9.9 10.7 134.1 147.5
3x2.5 10.7 11.6 173 186.4
3x4 12.7 13.8 251.6 271.5
3x6 13.5 15.3 318.8 353.2
3x10 16.4 17.5 476.1 506
3x16 18.8 20.7 685.8 739.7
3x25 22.4 24.3 1029.3 1080.2
3x35 24.8 26.9 1347.5 1415.7
3x50 24.7 31.4 1686 1964.9
3x70 27.7 36.3 2316.7 2707.6
3x95 31.5 41.1 3153 3578.9
3x120 34.3 44.9 3889.4 4421.3
3x150 37.9 49.6 4781.1 5483.7
3x185 41.9 53.9 5953.3 6544.9
3x240 47.7 61 7772.8 8565.9
3x300 52.3 68.5 9665.8 10826.5
4-core 4x1.5 10.7 11.6 162.8 179
4x2.5 11.6 12.6 213 228.9
4x4 3.8 15.3 312.8 341
4x6 15.1 16.8 407.3 444.1
4x10 18.2 19.1 614.4 636.9
4x16 20.8 22.7 883.5 938.5
4x25 24.9 26.8 1333.4 1381.7
4x35 27.3 29.9 1734.4 1833
4x50 25.9 34.9 2130.0  2545.6
4x70 29.1 40.3 2951.1 3510.9
4x95 33.5 45.6 4050 4642.2
4x120 36.7 50.1 5017.5 5769.6
4x150 40.7 55.1 6174 7128.9
4x185 45.1 60.1 7694.9 8541.8
4x240 50.9 68.0  10038.6 11183.6
4x300 56.5 76 12524.5 14053.6
5-core 5x1.5 11.6 12.7 193.75 214.8
5x2.5 12.7 13.7 257.35 274.2
5x4 15.4 16.7 384.08 411.7
5x6 16.5 18.6 495.34 550
5x10 19.9 21.2 748.89 788.2
5x16 22.8 25.2 1081.89 1162.4
5x25 27.3 29.7 1636.41 1710.9
5x35 30.2 33.3 2149.18 2284.8
5x50 32.1 38.7 2806.2 3155.5
5x70 36 44.7 3852.4 4353.4
5x95 41.5 50.8 5275.7 5783.5
5x120 44.7 55.8 6488 7186
5x150 49.4 61.4 7993 8881.9
5x185 55 66.9 9963.7 10634.7
5x240 62.7 75.9 13026.5 13959.3
5x300 69.9 84.1 16240.5 17411.7
