Product Characteristics:
The multi-channel control cable adopts a multi-core design, supporting independent transmission of multiple signal channels. The internal conductors of the cable are made of high-quality materials to ensure the stability and accuracy of signal transmission. The outer layer is made of wear-resistant and anti-interference materials, making it suitable for multi-channel control systems in complex environments.
Application:
It is widely used in multi-channel control systems in recording studios, television stations, radio stations, etc., for connecting mixing consoles, effects processors, recording equipment, etc., to achieve synchronous transmission and control of multiple audio signals, improving the efficiency and quality of audio production.
KCEYJ-P3V/KCEYJP4P3V

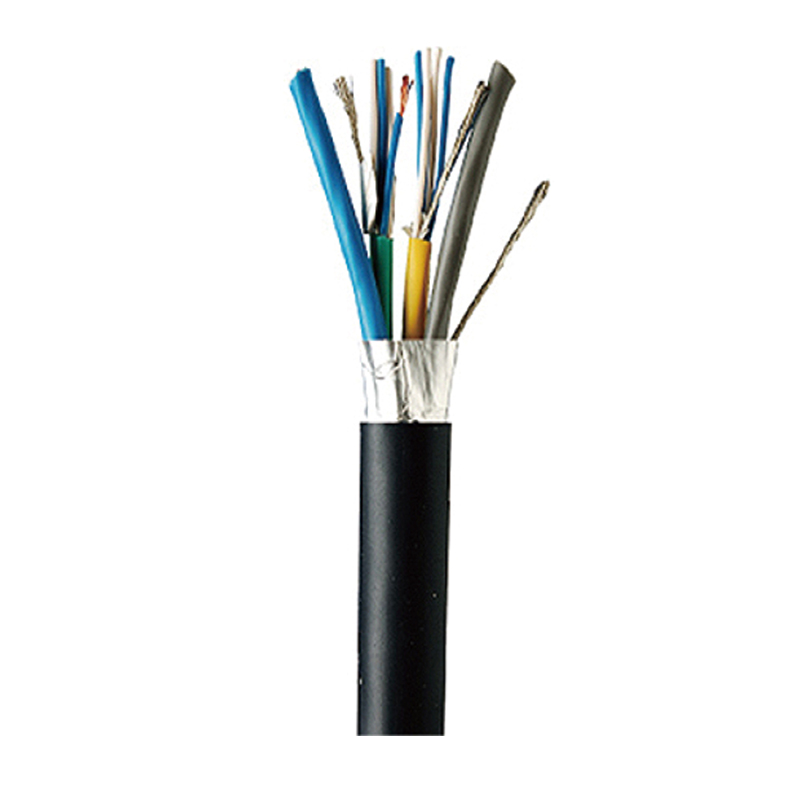

KCEVJ-P3V/KCEVJP4P3V spiral shielded multi-channel control cable
|
Specification
|
Number of channels
|
Conductor cross section
mm2
|
American wire gauge
AWG
|
Approximate outer diameter
mm
|
Approximate Weight
kg/km
|
|
4P(2x0.20)
|
4
|
0.20
|
twenty four
|
9.8
|
90
|
|
8P(2x0.20)
|
8
|
0.20
|
twenty four
|
14.5
|
185
|
|
12P(2x0.20)
|
12
|
0.20
|
twenty four
|
16.5
|
298
|
|
4P(2x0.30)
|
4
|
0.30
|
20
|
12.0
|
117
|
|
8P(2x0.30)
|
8
|
0.30
|
20
|
18.0
|
243
|
|
12P(2x0.30)
|
12
|
0.30
|
20
|
21.0
|
406
|
The conductors of this series of products are made of extremely fine, multi-strand high-quality 4N oxygen-free tinned wires, and the spiral shielding is also made of extremely fine 4N oxygen-free tinned wires (the P4 in the model refers to the overall aluminum shielding of the cable), which has excellent low-frequency noise protection and anti-interference capabilities. The cable structure is tight, not easy to break, relatively soft, can be frequently retracted and reused; good electrical characteristics are the best choice for engineering integrated wiring. It is suitable for installing engineering integrated wiring in studios, stages, multi-function halls, theaters, stadiums, conference halls, concert halls and other places.
KCEYJ-P4V/KCEYJP4P4V

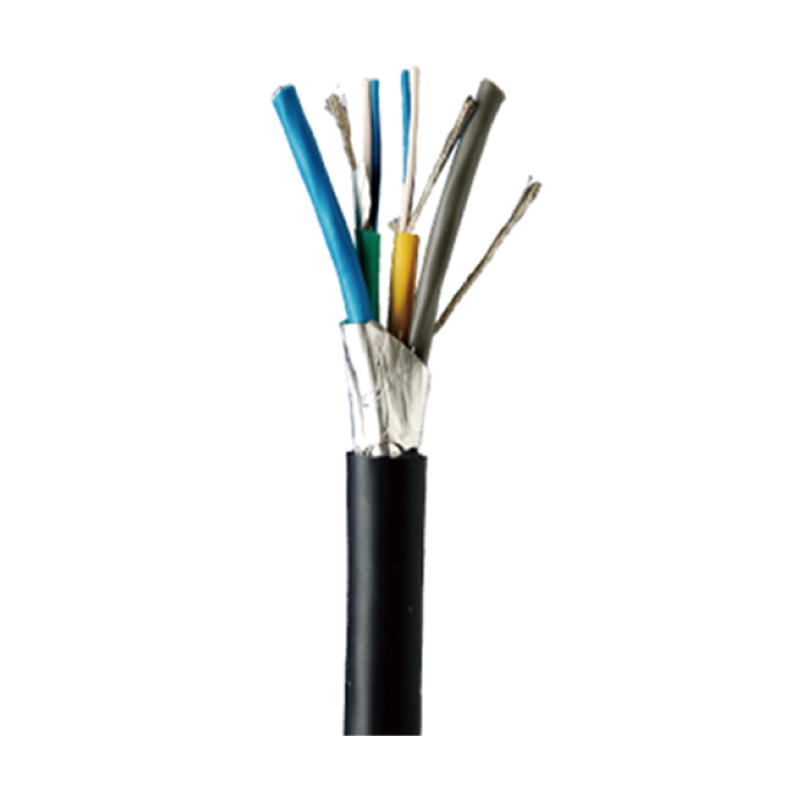

KCEVJ-P4V/KCEVJP4P4V Aluminum-wound shielded multi-channel control cable
|
Specification
|
Number of channels
|
Conductor cross section
mm 2
|
American wire gauge
AWG
|
Approximate outer diameter
mm
|
Approximate Weight
kg/km
|
|
4P(2×0.20)
|
4
|
0.20
|
twenty four
|
9.0
|
81
|
|
8P(2×0.20)
|
8
|
0.20
|
twenty four
|
13.8
|
176
|
|
12P(2×0.20)
|
12
|
0.20
|
twenty four
|
15.8
|
290
|
|
4P(2×0.30)
|
4
|
0.30
|
20
|
11.2
|
102
|
|
8P(2×0.30)
|
8
|
0.30
|
20
|
16.5
|
282
|
|
12P(2×0.30)
|
12
|
0.30
|
20
|
19.5
|
385
|
The conductors of this series of products are made of extremely fine, multi-strand high-quality 4N oxygen-free tinned wires, and the spiral shielding is also made of extremely fine 4N oxygen-free tinned wires (the P4 in the model refers to the overall shielding of the cable with thin aluminum), which makes it have excellent low-frequency noise and anti-interference capabilities. The cable structure is tight, not easy to break, relatively soft, can be frequently retracted and reused; good electrical characteristics are the best choice for engineering integrated wiring. It is suitable for installing engineering integrated wiring in studios, stages, multi-function halls, theaters, stadiums, conference halls, concert halls and other places.
KCEYJ-P4V/KCEYJP4P4V
KCEVJ-P4V/KCEVJP4P4V Aluminum-wound shielded multi-channel control cable
|
Specification
|
Number of channels
|
Conductor cross section
2 mm
|
American wire gauge
AWG
|
Approximate outer diameter
mm
|
Approximate Weight
kg/km
|
|
4G(4×0.18+1)
|
4
|
0.20
|
twenty four
|
12.0
|
151
|
|
8G(4×0.18+1)
|
8
|
0.20
|
twenty four
|
17.5
|
321
|
|
12G(4×0.18+1)
|
12
|
0.20
|
twenty four
|
18.8 414
|
|
4G(4×0.18+1)
|
4
|
0.30
|
20
|
14.5
|
210
|
|
8G(4×0.18+1)
|
8
|
0.30
|
20
|
21.5
|
456
|
|
12G(4×0.18+1)
|
12
|
0.30
|
20
|
23.8
|
586
|
The conductors of this series of products are made of extremely fine, multi-strand high-quality 4N oxygen-free tinned wires, and the spiral shielding is also made of extremely fine 4N oxygen-free tinned wires (the P4 in the model refers to the overall shielding of the cable with thin aluminum), which makes it have excellent low-frequency noise and anti-interference capabilities. The cable structure is tight, not easy to break, relatively soft, can be frequently retracted and reused; good electrical characteristics are the best choice for engineering integrated wiring. Scope of application: installation of engineering integrated wiring in studios, stages, multi-function halls, theaters, stadiums, conference halls, concert halls and other locations.
