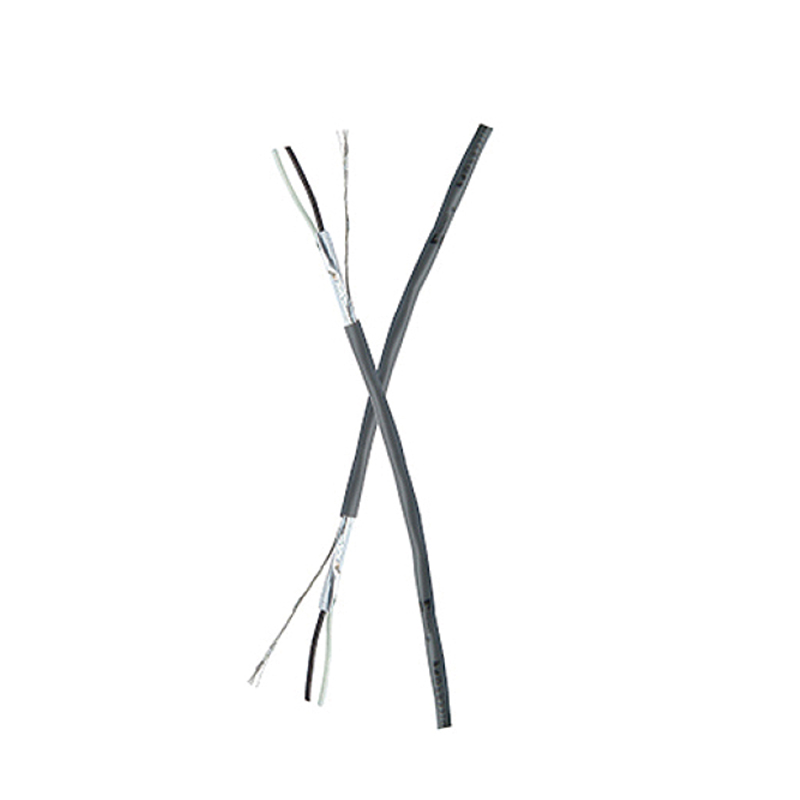

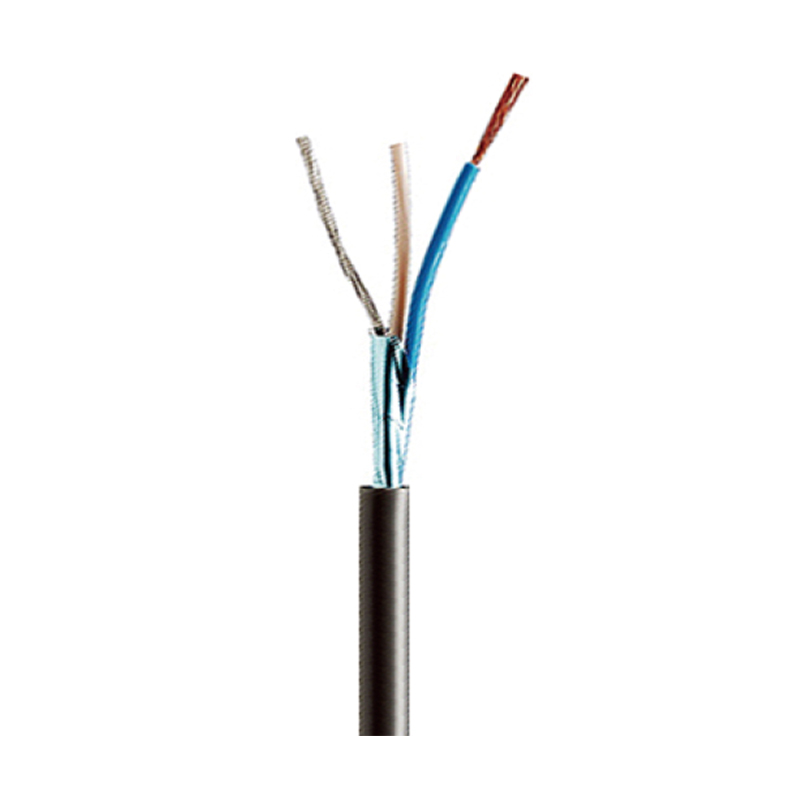

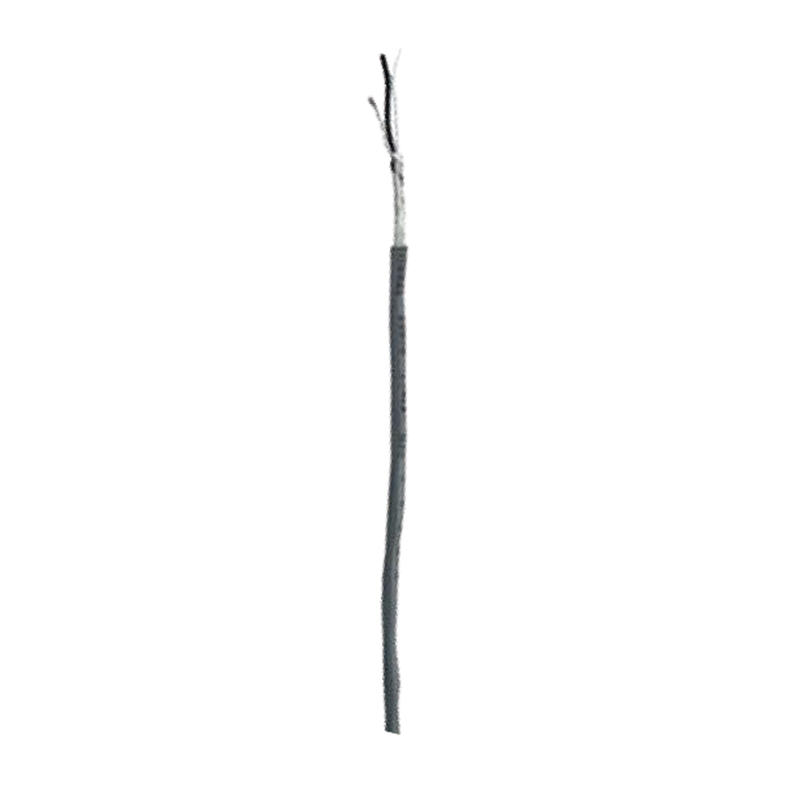

Audio Installation Cables

Product Usage:

Audio installation cables are specifically designed for the installation and wiring of audio systems, featuring electrical performance and mechanical strength. These cables use high-quality conductors and insulating materials to ensure clarity and stability of audio signals. They are suitable for the installation of various audio systems, such as background music systems and public broadcasting systems, providing users with high-quality audio experiences.

PREV：Multi-channel Control CablesNEXT：Multimedia and Digital Cables
Parameter

Product Characteristics:
The audio installation cable adopts a professional-grade design to meet the installation requirements of large-scale audio systems. The cable internally uses high-purity copper conductors to ensure stable transmission of audio signals. The outer layer is made of fire-resistant, moisture-proof, and wear-resistant materials, enhancing the cable's safety and durability.

Application:
It is primarily used for the installation and wiring of large-scale audio systems in theaters, stadiums, concert halls, and other venues, ensuring high-quality transmission of audio signals and enhancing the overall sound quality.

A3SVYJP3 Spiral Shielded Audio Installation Cable

Specification Number of conductors Conductor cross section mm² American wire gauge
AWG		 Approximate outer diameter mm Approximate weight kg/km
2x7/0.20 2 0.22 twenty four 4.0 19
2x7/0.26 2 0.37 twenty two 4.5 28
2x28/0.15 2 0.50 20 5.5 39

The wires of this series of products are made of very fine, multi-strand high-quality 4N oxygen-free copper tinned wire, and the spiral shielding also uses very fine 4N oxygen-free tinned wire; it has excellent low-frequency noise and anti-interference capabilities; the unique concave and convex shape and hard outer sheath are ideal for engineering audio for concealed wiring layout. It is suitable for TV stations, multi-function halls, studios, theaters, stadiums, conference halls, concert halls and other installation projects.

A3SVYJP4 Aluminum Foil Shielded Audio Installation Cable

Specification Number of conductors Conductor cross section mm² American wire gauge
AWG		 Approximate outer diameter mm Approximate weight kg/km
2x7/0.20+1 2 0.22 twenty four 4.0 16
2x7/0.26+1 2 0.37 twenty two 4.5 25
2x28/0.15+1 2 0.50 20 5.5 57

The wires of this series of products are made of extremely fine, multi-strand high-quality 4N oxygen-free tinned wires, and are shielded by aluminum foil winding, which makes them have excellent high-frequency noise protection and anti-interference capabilities. The unique concave-convex shape and hard outer sheath are ideal for use in audio engineering for concealed wiring layout. Suitable for TV stations, multi-function halls, studios, theaters, stadiums, conference halls, concert halls and other installation projects.

ACVVJP4 aluminum foil shielded audio installation cable

Specification Number of conductors Conductor cross section mm² American wire gauge
AWG		 Approximate outer diameter mm Approximate weight kg/km
2x16/0.12+1 2 0.18/0.28 25/22 4.0 twenty one
4x16/0.12+1 4 0.18/0.28 25/22 4.5 28
4x16/0.10+1 4 0.30/0.50 22/20 5.5 42

The wires of this series of products are made of extremely fine, multi-strand high-quality 4N oxygen-free tinned wires, and are shielded by aluminum foil winding, which makes them have excellent high-frequency noise and anti-interference capabilities. The unique concave and convex shape and hard outer sheath are ideal for use in audio engineering for concealed wiring layout. Suitable for TV stations, multi-function halls, studios, theaters, stadiums, conference halls, concert halls and other installation projects.


A3SWVJ2P4 Aluminum Foil Shielded Audio Installation Cable

Specification Number of conductors Conductor cross section mm² American wire gauge
AWG		 Approximate outer diameter mm Approximate weight kg/km
2(2x7/0.20)+1 4 0.22 twenty four 5.6 35
2(2x28/0.15)+1 4 0.50 20 7.8 92

The conductors of this series of products are made of extremely fine, multi-strand high-quality 4N oxygen-free tinned wires, and the aluminum foil is wrapped and shielded, which has excellent high-frequency noise and anti-interference capabilities. The core wire twisted and then twisted structure makes the cable more balanced; the unique concave and convex shape and hard outer sheath are ideal for the dark wiring layout of audio engineering or the cable forming behind the cabinet; it is also more suitable for balanced access. It is suitable for TV stations, multi-function halls, studios, theaters, stadiums, conference halls, concert halls and other installation projects.
