Multimedia and Digital Cables

Product Usage:

Multimedia and digital cables are specifically designed for connecting various multimedia and digital devices, supporting the transmission of audio, video, data, and other signals. These cables adopt high-speed transmission technology and high-quality materials to ensure high-speed, stable signal transmission. They are suitable for connections between computers, TVs, projectors, gaming consoles, and other multimedia devices, providing users with rich multimedia experiences.

PREV：Audio Installation CablesNEXT：Video Cables
Parameter

Product Characteristics:
Multimedia and digital cables support high-speed data transmission, meeting the transmission needs of high-definition audio, video, and multimedia files. Adopting advanced digital signal processing technology ensures the accuracy and stability of signal transmission. The cables are designed to be flexible and versatile, suitable for various interfaces and device connections.

Application:
Widely used for connections between multimedia devices such as computers, TVs, gaming consoles, and audio systems, supporting functions such as data transmission, audio and video playback, enhancing the overall multimedia experience.

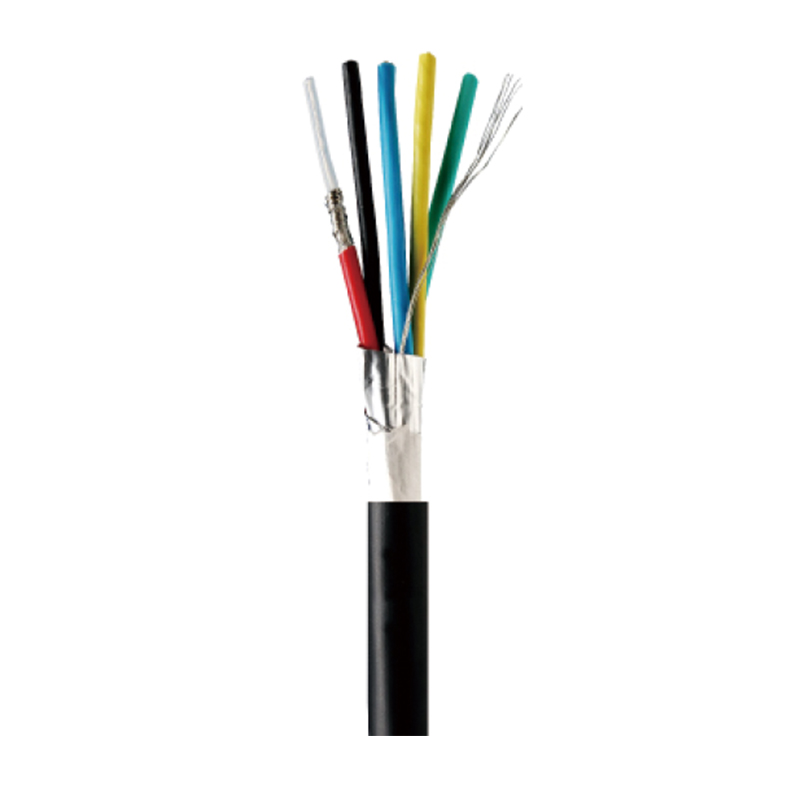

VGA multimedia signal cable

Specification Number of conductors Conductor cross section mm² American wire gauge
AWG		 Approximate outer diameter mm Approximate weight kg/km
3V+4K 7 0.08/0.12 28/26 8.2 78
3V+6K 9 0.08/0.12 28/26 9.5 82

This cable has good anti-interference ability, provides convenience for construction, and is suitable for various video conferencing systems.

RGB multimedia signal cable

Specification Number of conductors Conductor cross section mm² Characteristic impedance Ω Approximate outer diameter mm Approximate weight kg/km
75-2 5 0.08 75 8.2 78
75-3 5 0.15 75 9.5 82

This cable has good anti-interference ability, provides convenience for construction, and is suitable for various video conferencing systems

.

Number of cores x nominal cross section
mm 2		 Number of conductors American wire gauge
AWG		 Characteristic impedance Ω Approximate outer diameter mm Approximate weight kg/km
2x0.20 2 twenty four 110 5.4 40

This cable is suitable for digital audio (AES/EBU) transmission, and its impedance is 110 ohms. Application scope: various digital audio transmission occasions.

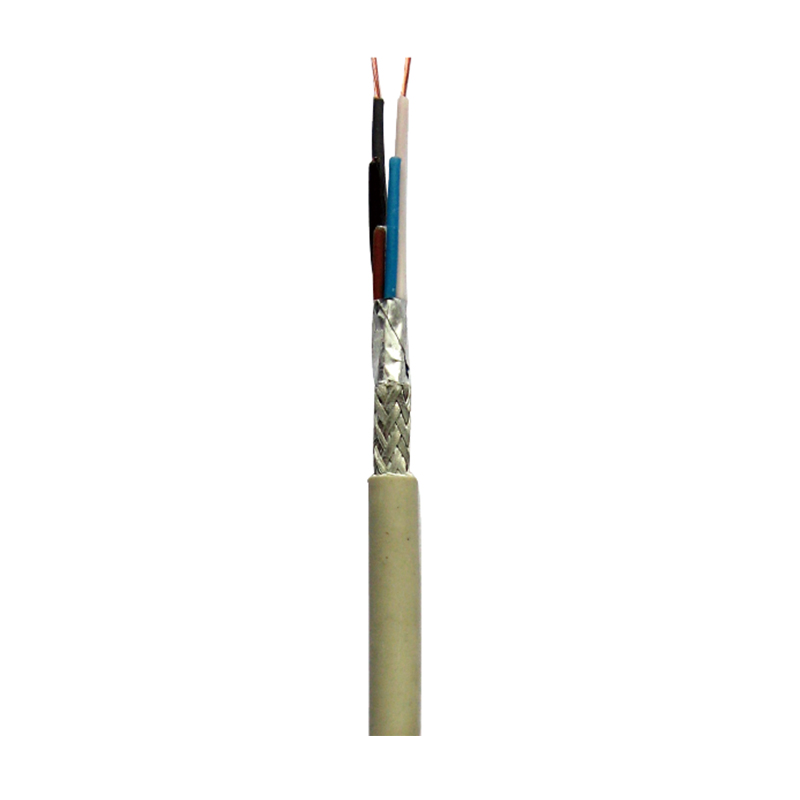

DMX512 signal cable

Number of cores x nominal cross section
mm 2		 Number of conductors American wire gauge
AWG		 Characteristic impedance Ω Approximate outer diameter mm Approximate weight kg/km
2x0.30 2 twenty two 120 8.5 86
4x0.30 4 twenty two 120 12.5 158
2x0.50 2 20 120 7.0 73
4x0.50 4 20 120 9.5 110

The DMX512 control signal is a protocol standard developed by the United States Society of Theatrical Technology (USITT) specifically for data communication between stage lighting consoles and dimmers (silicon boxes). It was later expanded to the control of various stage equipment such as stage effect equipment (such as computer lights, smoke machines, bubble machines, etc.) and color changers, and is widely used in the entertainment industry.
